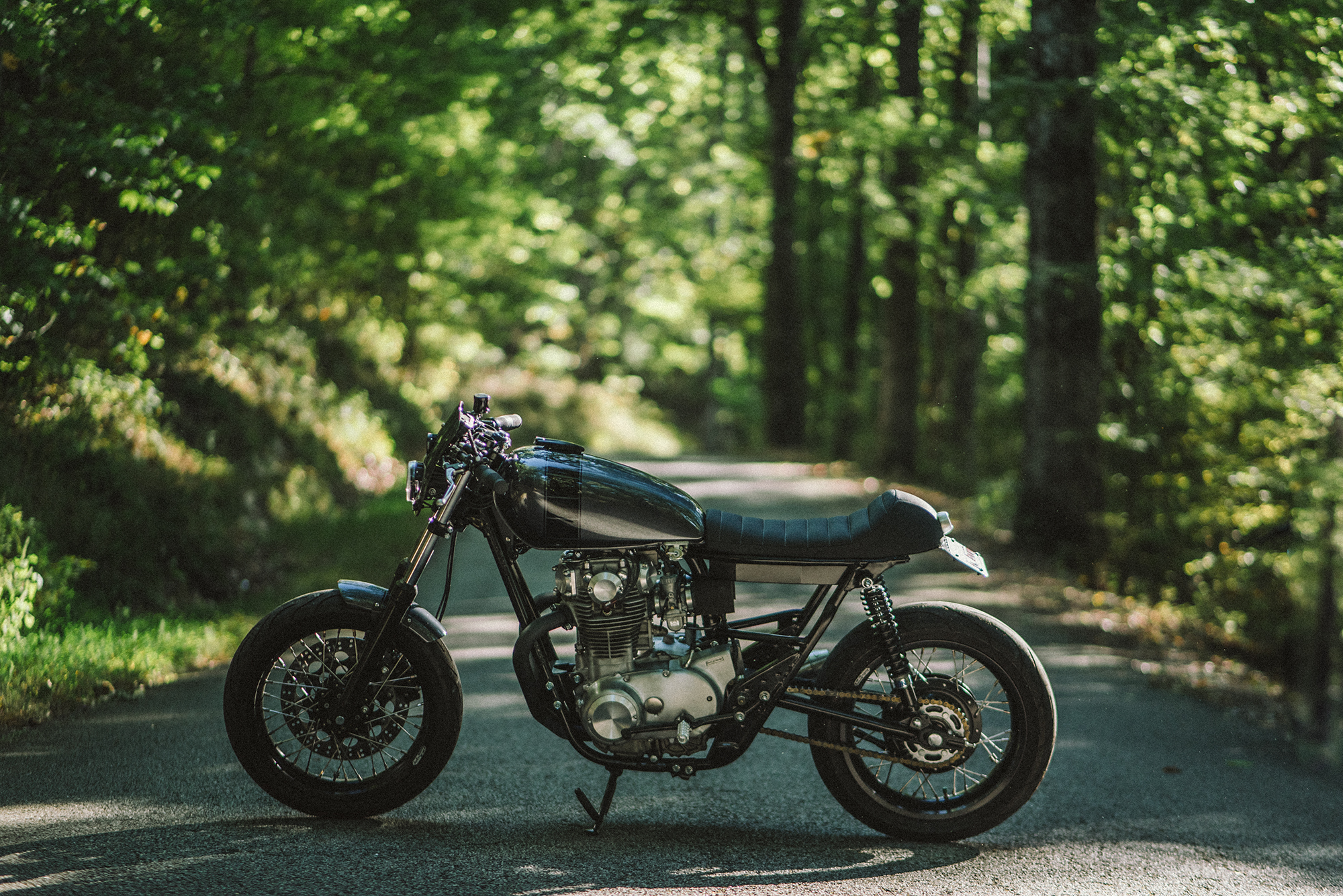

1981 Yamaha XS650 – Reloaded

1981 Yamaha XS650 – Reloaded

Chassis

  • Subframe trimmed

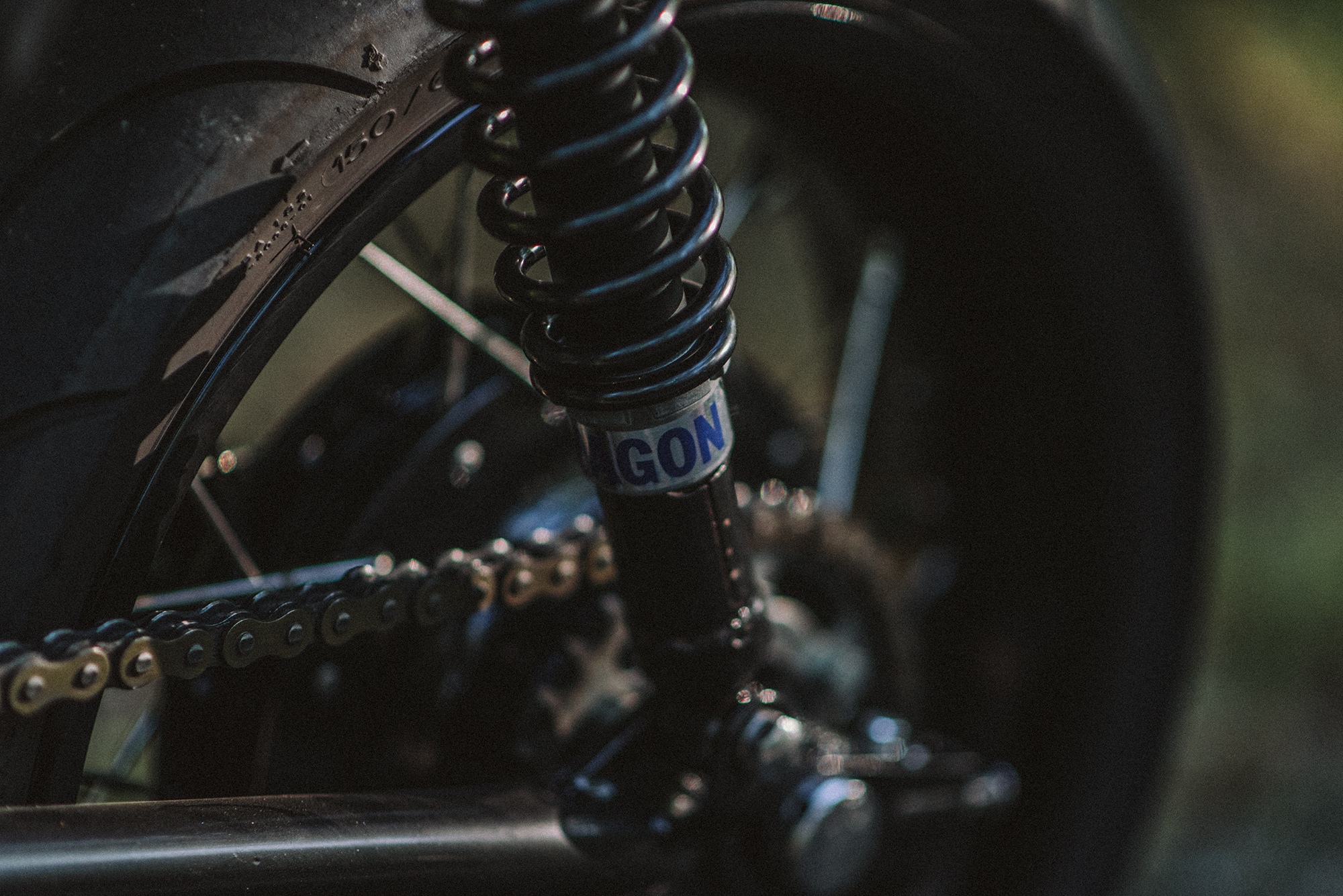

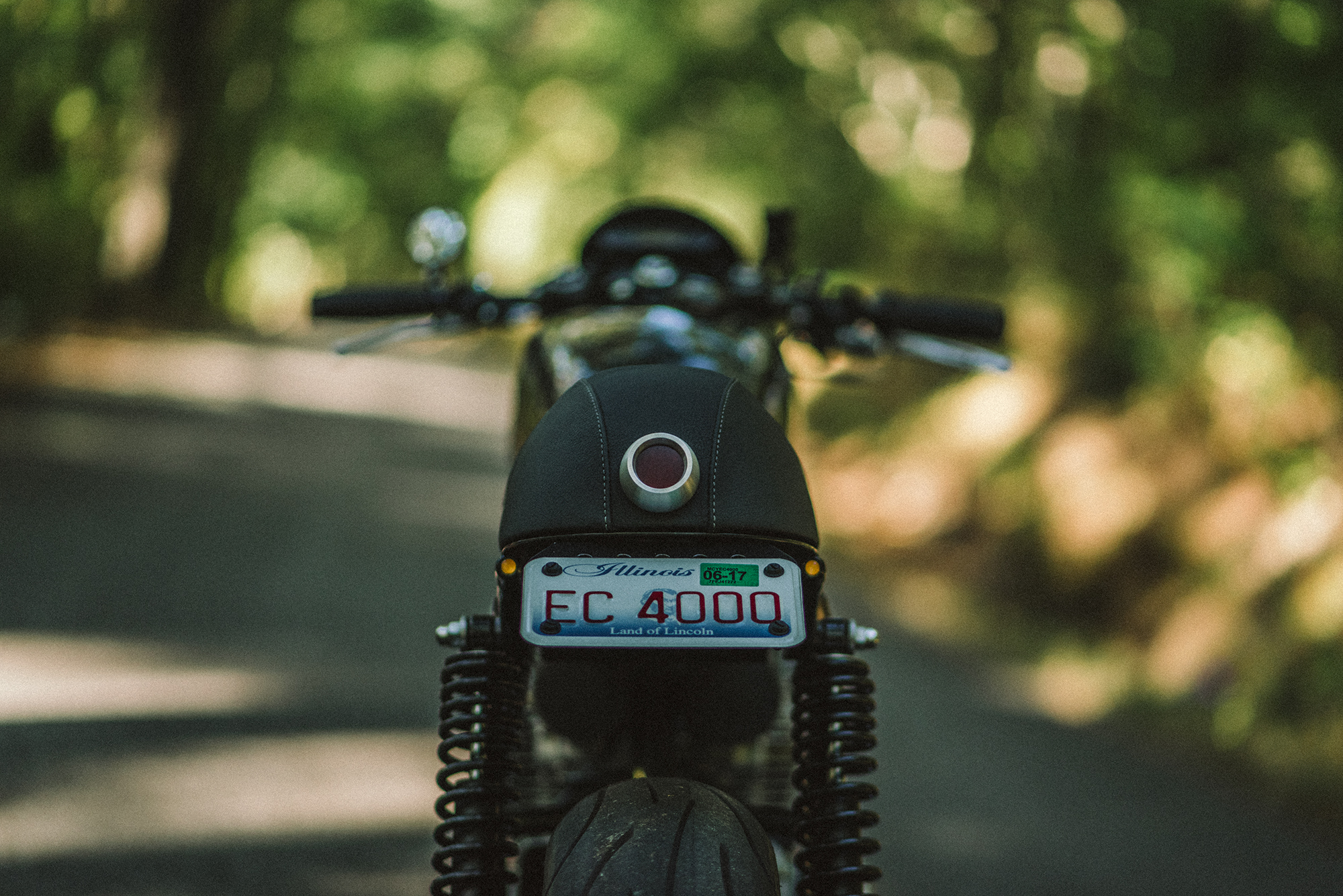

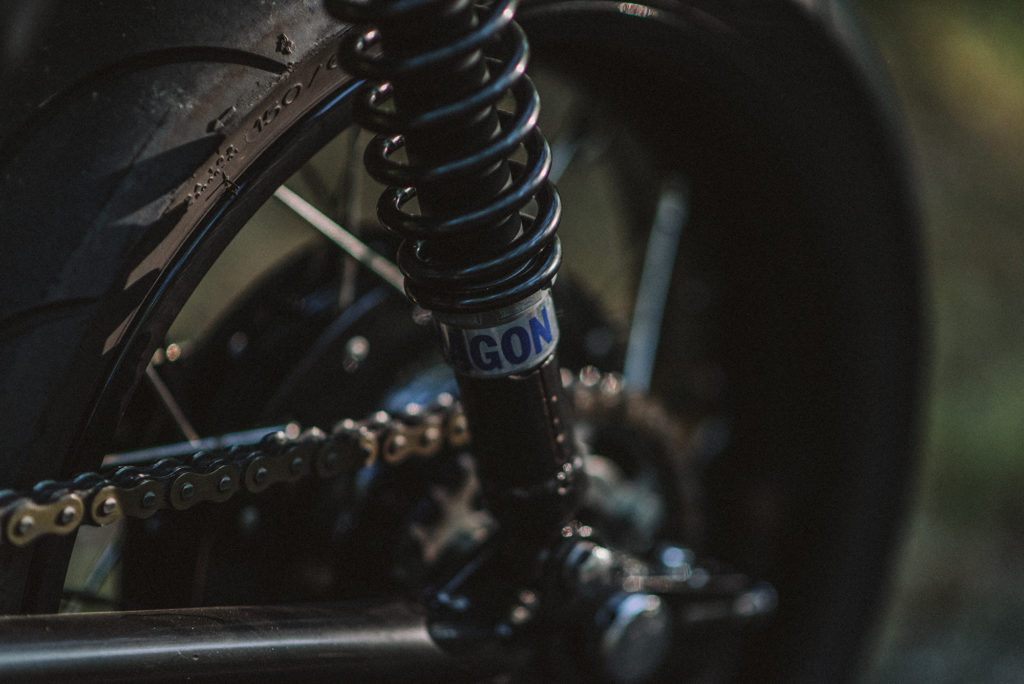

  • Hagon Rear shocks
  • Race Tech gold valve emulators and springs in rebuilt forks
  • 17” Sun rims laced to stock hubs

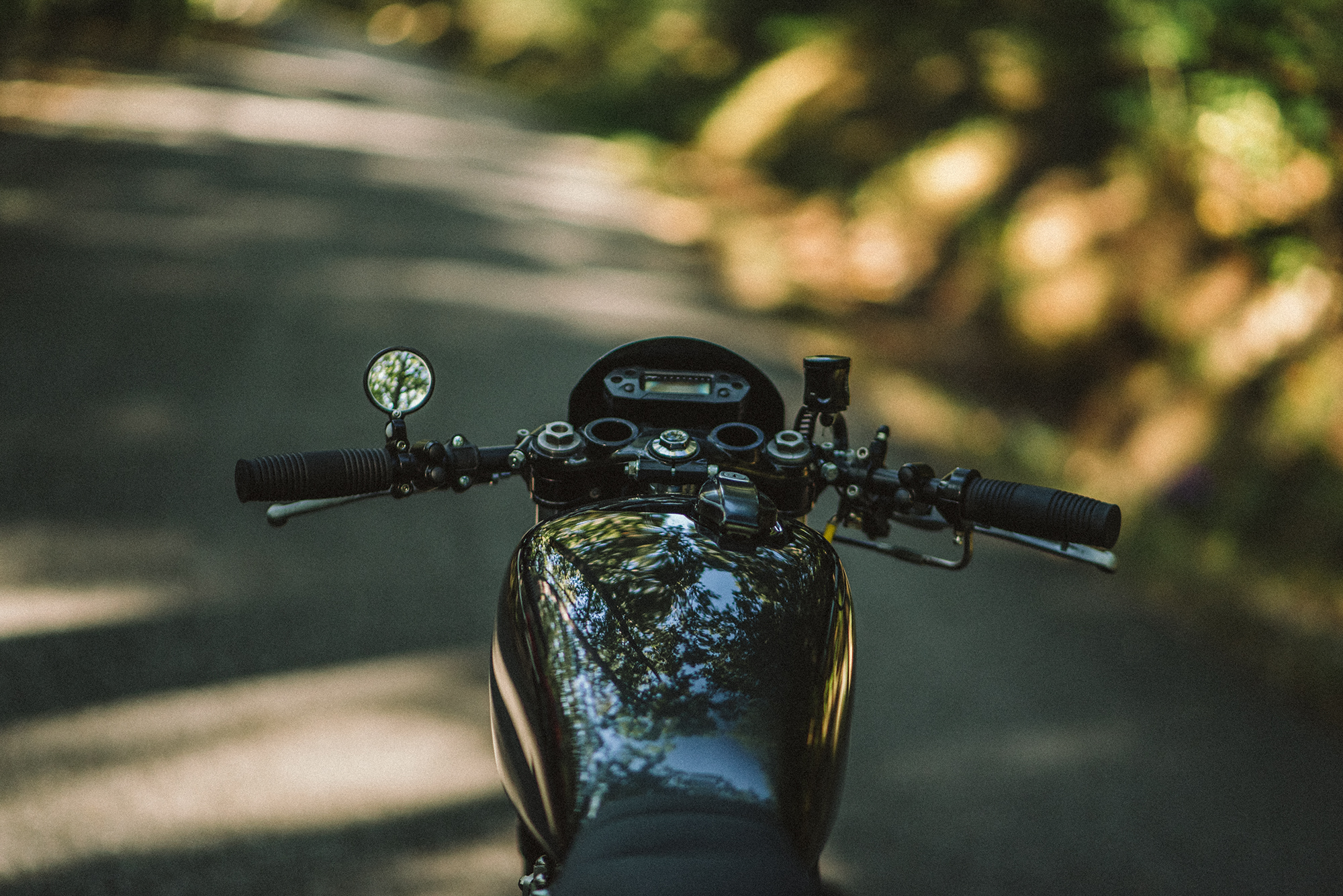

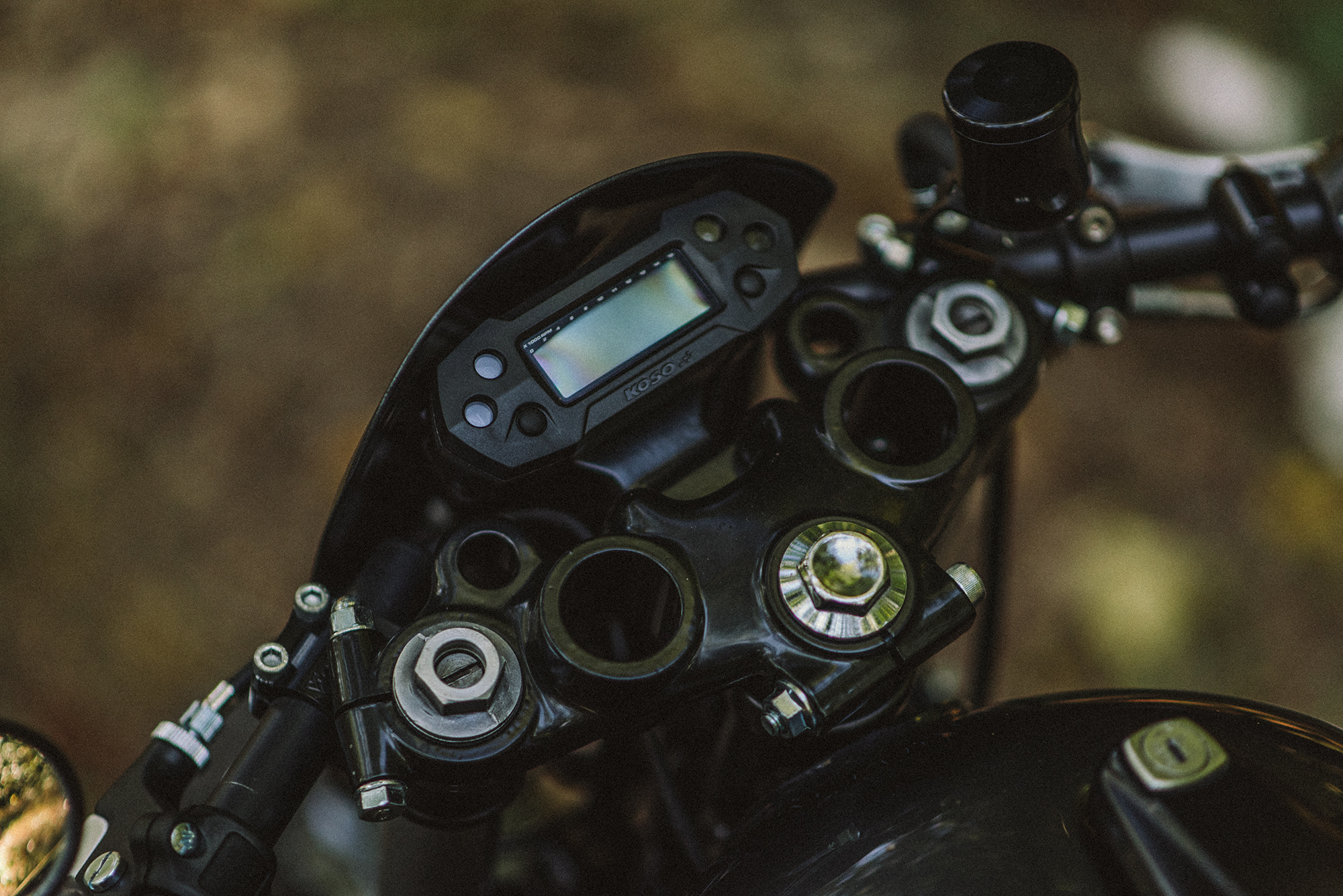

  • Vortex Clip-ons
  • Custom big brake set up by Loaded Gun Customs
  • Detabbed and powder coated frame

Engine

  • Boyer electronic ignition
  • Upgraded charging system
  • Analog Motor Goods Billet Stator, Valve, and Points Covers

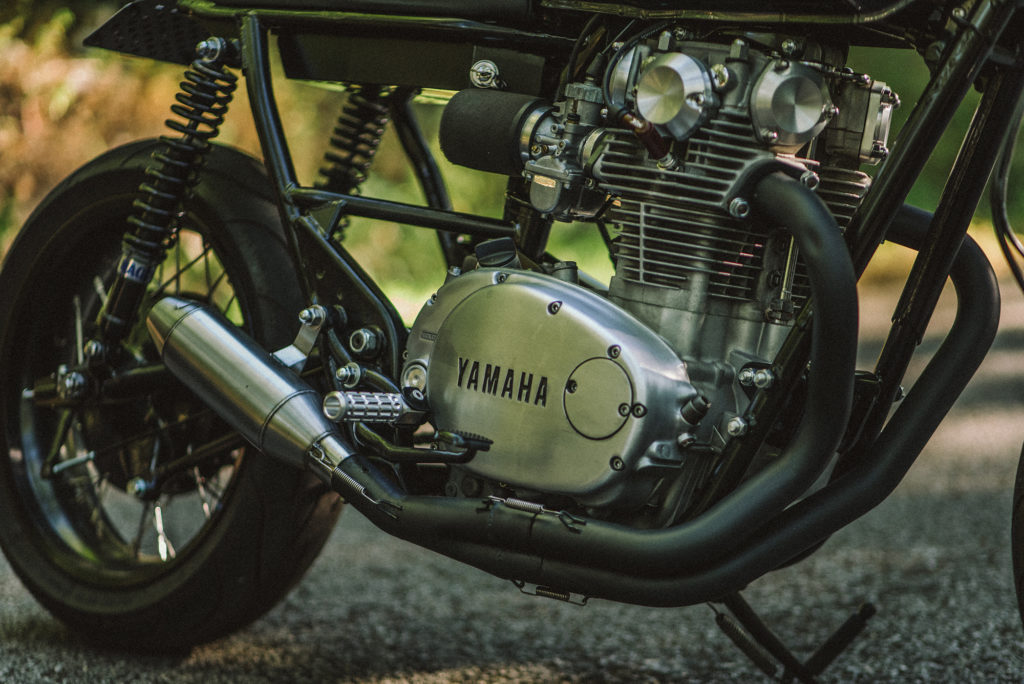

  • Custom 2 into 1 exhaust with Cone Engineering muffler

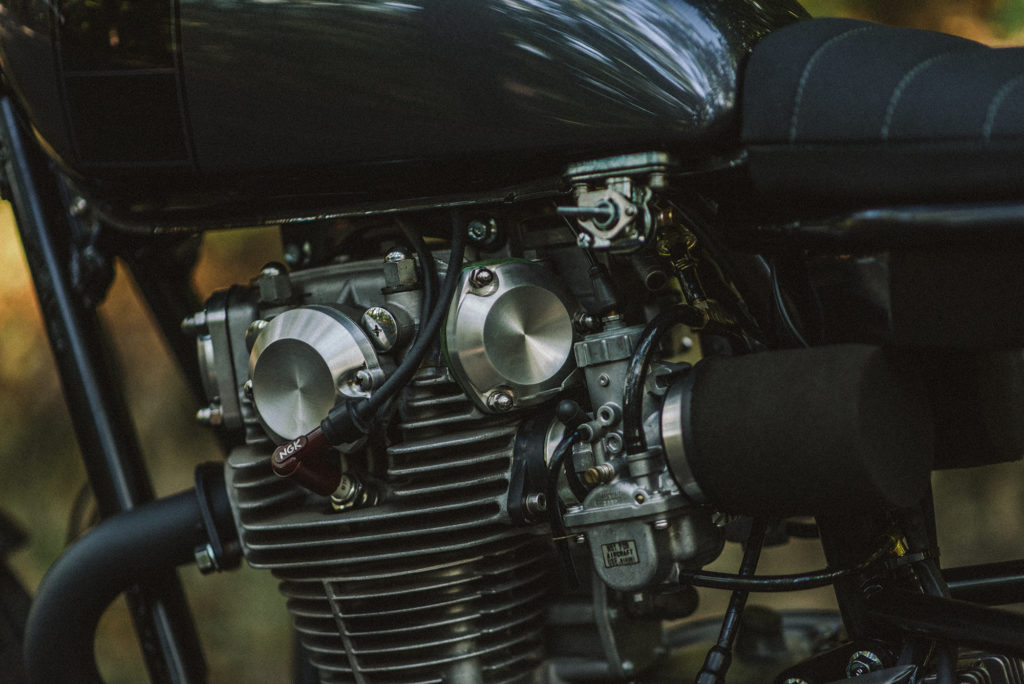

  • Tuned Mikuni VM34 carbs
  • Uni pod filters
  • Main cases treated to a Scotch-Brite brushed finish

Body

  • Custom made front fender and brackets

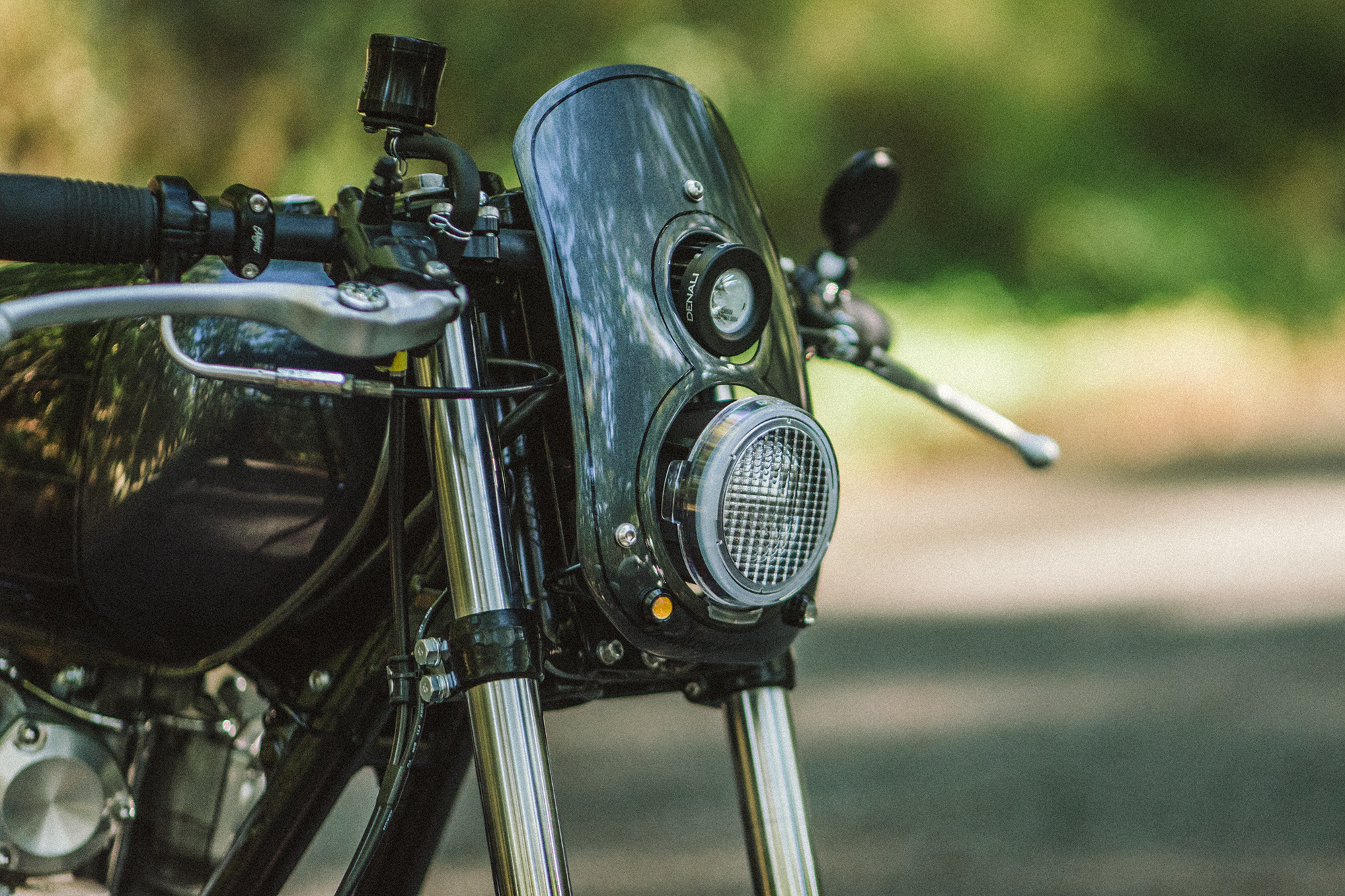

  • Custom made fly screen
  • Paint by Kiel’s Kustoms
  • Custom made battery tray
  • Custom seat pan
  • Upholstery by 83 Seats

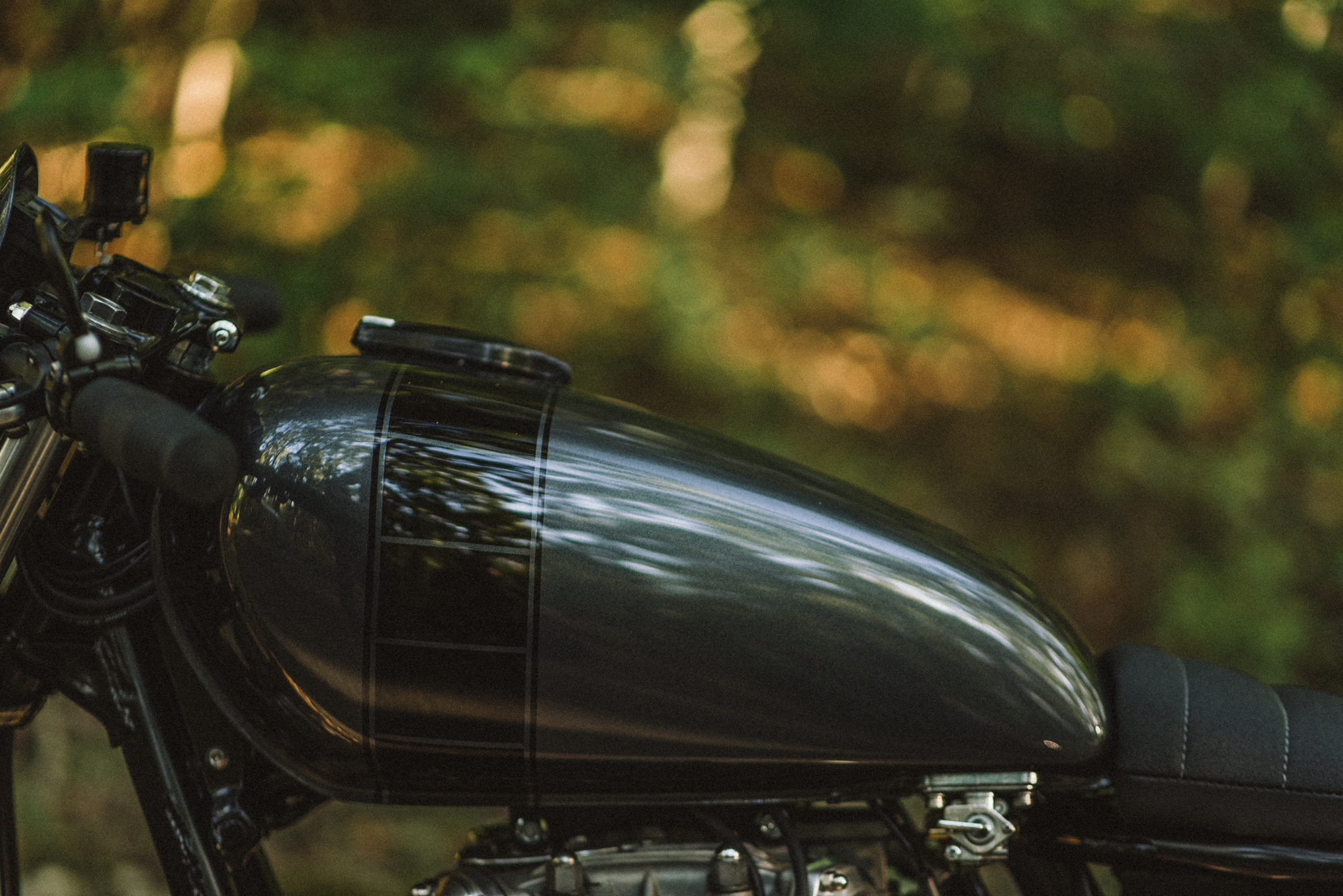

  • Pinstripe by Brando

Misc

This bike was a one-off project.  We do not make copies of bikes, but if you would like us to create your very own custom build click HERE to find out how we can do that.

Photography by: Brandon LaJoie

Social Media
Instagram: @brandon_lajoie

December 19, 2016

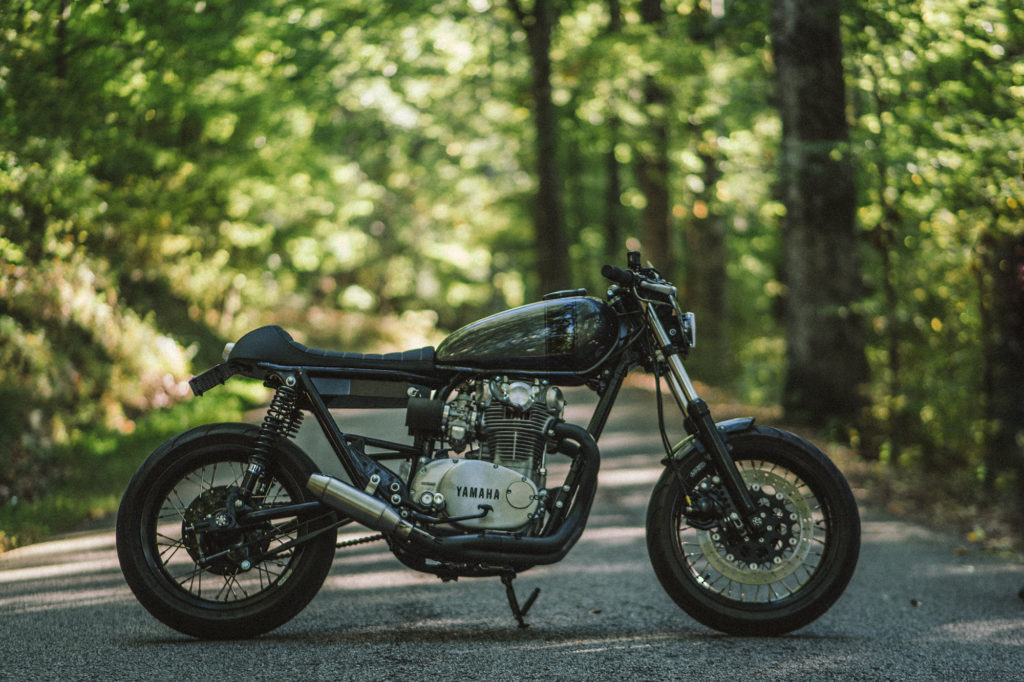

XS650 Reloaded from Analog Motorcycles
XS650 from Analog Motorcycles

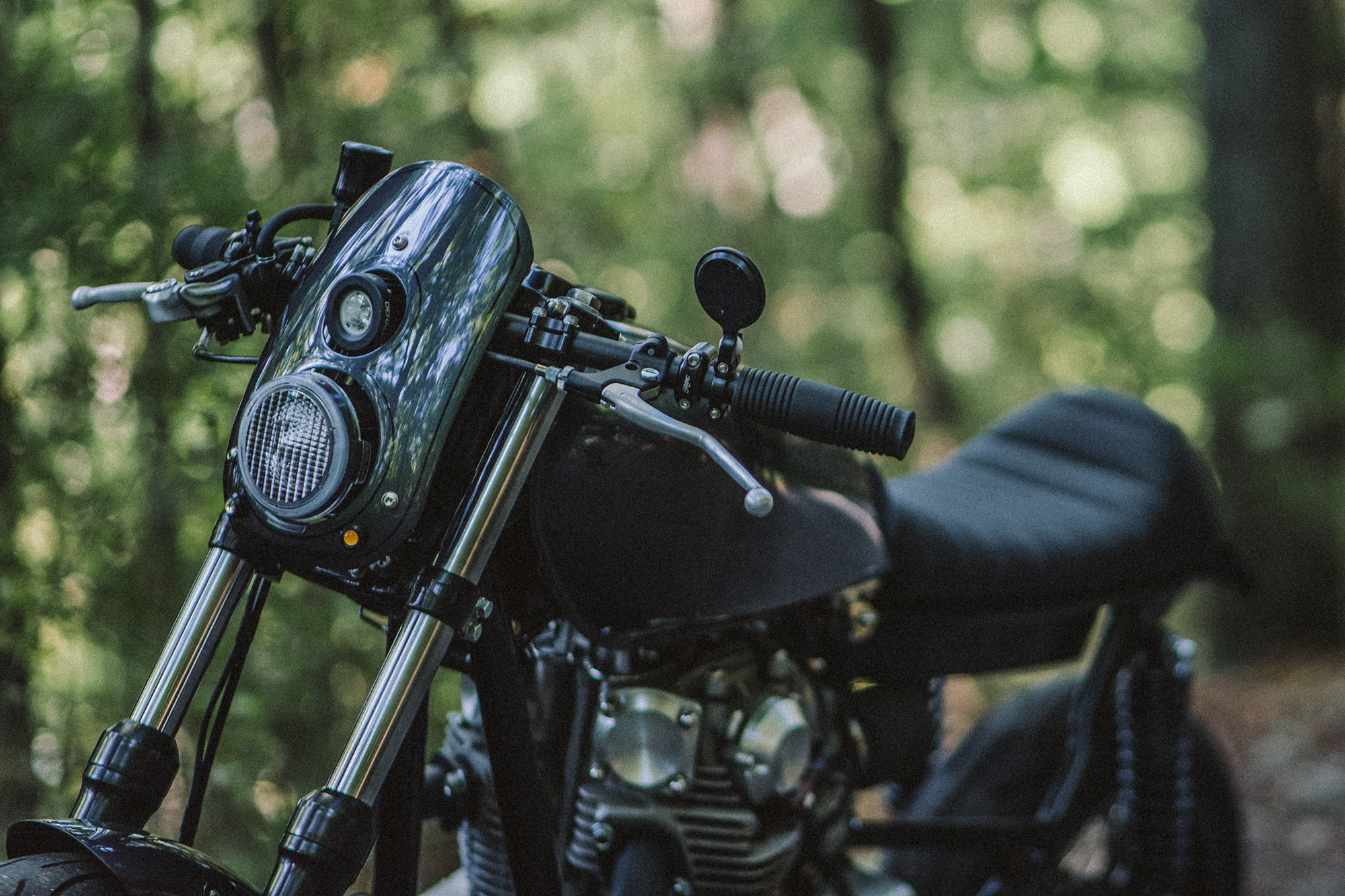

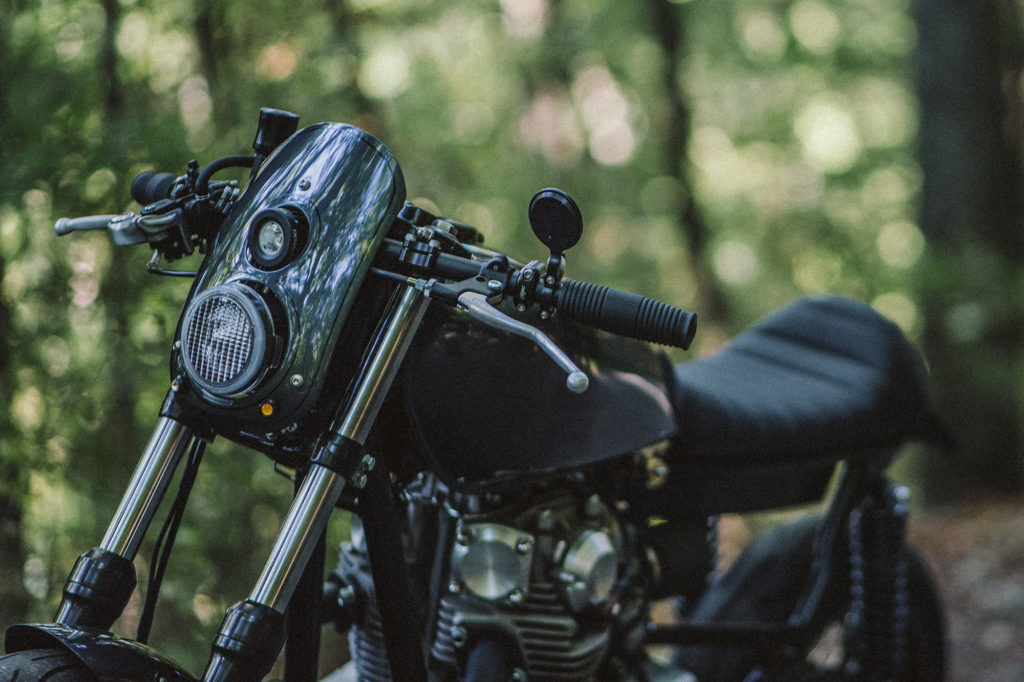

Denali DR1 (Lower) and D2 (Upper)
XS650 from Analog Motorcycles
XS650 from Analog Motorcycles
XS650 from Analog Motorcycles
XS650 from Analog Motorcycles
XS650 from Analog Motorcycles
XS650 from Analog Motorcycles

Comments (25)

Hello, first of all congratulations with the Yamaha XS650 Reloaded. Nice bike. I am the owner of a Yamaha XS650 and i try to improve my brakes and i was wondering which calipers and rotors were used for the “Reloaded” project. Also, would those just fit on an original frontfork? If adaptors are necessary please send informations about size, etc. Thanks in advance.

We did that bike a number of years ago. I can not remember all that went into it. If I recall Kevin at Dunworth Customs actually did the front wheel/ brake conversion. He does more XS650 builds then we have and probably has the answers you need.
