m.Relay+

m.Relay+

$ 97.00

The PLUS is where it's at!

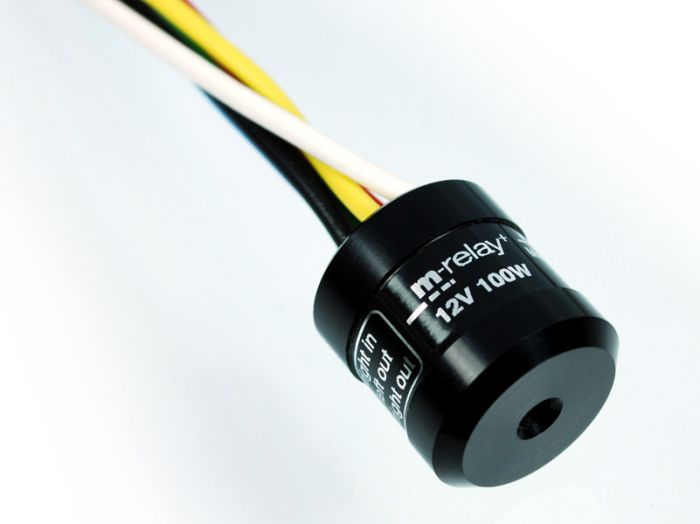

The m.Relay+ purposefully combines a load independent digital flasher relay and electronic push-button controller.

Depending on how long the respective turn signal push-button is activated, 4 different operating modes are available:

a) Change of lane: Short tap on push-button – blink 3x and automatic switch-off
b) Turn: Pressing push-button shortly – blink 10x and automatic switch-offy
c) Continuous flashing: Pressing push-button longer – switching off only after pressing the push-button repeatedly
d) The m.Relay+ is equipped with a hazard flasher function – activated by pressing both push-buttons simultaneously

Weight .25 lbs
Dimensions 2 x 1 x 1 in
Country of Manufacture

Germany

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

The m.Relay+ is load independent (1-100 W) and provides a constant flasher frequency to almost all models of LED, micro or halogen turn signal lights as well as 10 or 21 W light bulbs. Immediate, loss free and brighter illumination results from the effective microelectronic.
The light and compact aluminium casing is anodized black and features a M3 mounting thread. Removable mounting with cable ties is also possible. Ideal for mods and custom bikes with restricted mounting space. The electronics are water-tight, vibration resistant and are equipped with an overload protection.

Attention: If you are looking for a flasher relay WITHOUT push-button controls please refer to our m.Flash or m.Wave series!
Attention: If you are looking for a flasher relay WITHOUT push-button controls but with automatic deactivation please refer to our m.Stop series!
Attention: If you are looking for fully featured push-button controls with lots of additional features, please refer to our m.Unit series!

Dimensions

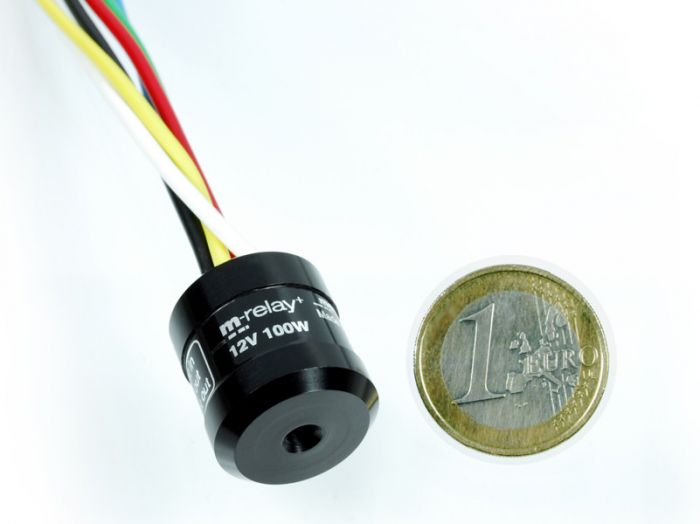

Diameter 20mm (without cable), height 21.5mm

All advantages summarized

  • very compact, light and easy to mount
  • ideal for custom bikes and mods with little mounting space – bulky conventional relays or load resistors are a thing of the past
  • no additional push-button control unit necessary
  • intuitive time control and automatic deactivation
  • almost load independent (min. 1 Watt)
  • completely implemented using digital semiconductor technology. microprocessor controlled No mechanical workings, no spools, no electrical contacts
  • consistantly constant and correct flasher frequency and suited for almost all LED turn signal lights, all micro and halogen turn signal lights as well as all 10-watts and 21-watts turn signal lights
  • e. g. works with 4 turn signal lights or 2 handle bar end turn signal lights
  • immediate loss free and brighter illumination of all turn signal lights
  • completely water tight and vibration resistant because of the moulded-in construction
  • short circuit proof, automatic overload protection, switches power up to 100 W.
  • no heat generation while operating
  • only 5 – 18 V operating voltage required
  • quality ‘made in Germany’ – by motogadget
