Motogadget Chronoclassic Speedometer

Motogadget Chronoclassic Speedometer

$ 579.00

The Motogadget Chronoclassic Speedometer is mechanically identical to the Motoscope Classic, but offers a more low-profile look with its black gauge face, instead of the Classic's white gauge face. Available with either black or polished bezels and the option of choosing the standard Green LCD at the bottom of the gauge, or the special Dark Edition of the gauge which features a black LCD with green characters, the Chronoclassic makes a stellar instrument cluster replacement for your machine.

If you're looking for another Motogadget product that you're unable to find listed here on our site, send us an email and we'll be happy to special order any Motogadget components you need. Delivery time for special order products can vary, so please contact us with questions should your project be on a tight deadline.

Clear
Weight 2 lbs
Dimensions 8 × 8 × 8 in
Bezel Color

Black, Polished

LCD Color

Green LCD, Dark Edition

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

The Motogadget Chronoclassic Speedometer is mechanically identical to the Motoscope Classic, but offers a more low-profile look with its black gauge face, instead of the Classic’s white gauge face. Available with either black or polished bezels and the option of choosing the standard Green LCD at the bottom of the gauge, or the special Dark Edition of the gauge which features a black LCD with green characters, the Chronoclassic makes a stellar instrument cluster replacement for your machine.

If you have any installation questions, we encourage you to check out the product manual, found here, for detailed instructions on how to install and configure the Chronoclassic Speedometer.

For more information, we’ve included Motogadget’s product description below:

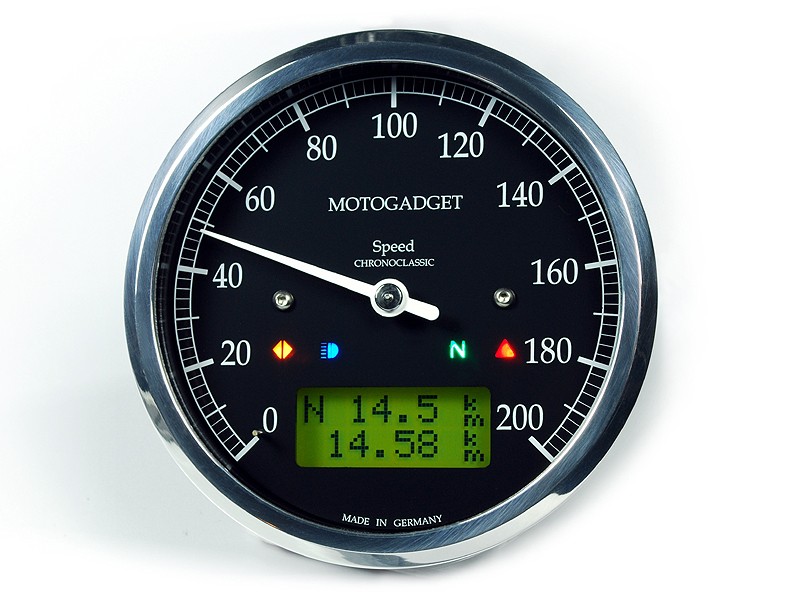

The motogadget Chronoclassic speedo is an analogue speedometer with many additional features in a classic round casing. Technically identical to the motoscope classic speedo, it brandishes a black dial and a white indicator. The design resembles old Smiths brand instruments.

Versions

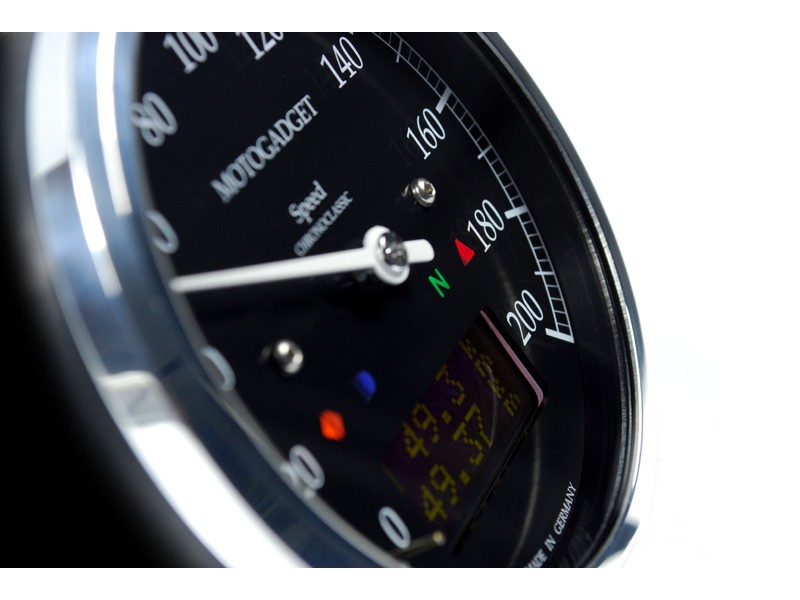

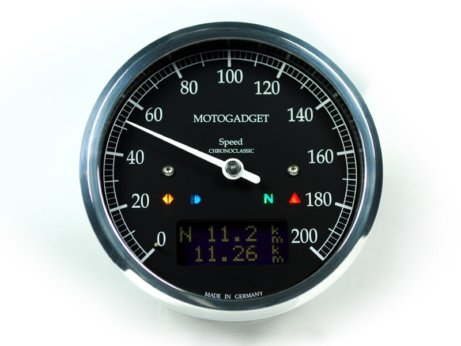

Another distinct characteristic is the dark LC display of the Motogadget Chronoclassic DarkEdition. It further increases the harmonic look of the gauge.

Please note: We explicitly stress that readability decreases in cases of direct sunlight. If readability is of primary concern to you, please purchase the standard green display.
A technically identical instrument is also available with a white dial (please refer to the motoscope classic speedo).

Parts delivered
Instrument with approx. 55 cm connector cable, complete wiring, fuse, speedometer sensor M5 x 0,5 fine-pitch thread with 150 cm connector cable, 2x magnet, mini push-button, 3x M4 screw (stainless steel), detailed installation and operating instructions. Please note that temperature and pressure sensors have to be ordered separately (refer to “Accessories”).

Specifications



  • Mounting diameter: 80 mm
  • Overall diameter (bezel): 85 mm
  • Depth without cable fitting: 34 mm
  • Weight: approx. 230 g
  • Mounting: 3 x M4 threaded hole
  • Power consumption (in operation): approx. 200 mA (depending on load)
  • Power consumption (in standby): 0 mA
  • Operating voltage: 9-18 V
  • Operating temperature: -20 °C… +80 °C
Feature Measuring range
Speedometer (analogue, indicator) 0 – 200 km/h or mi/h, on top on LCD
Trip meter 999 km or mi max.
Total distance (adjustable) 250000 km or mi max.
Journey time display 0 – 99:99:99 h/min/s
Rev counter (on LCD) 0 – 20000 rpm
rpm threshold, adjustable (int. LED and ext. gear shift flash) 0 – 20000 rpm
On-board voltage display 9 V – 18 V
NEW! Low voltage warning LED blinks if on-board voltage drops below approx. 11V – replacement for battery charge status light
Air temperature* (optional instead of water temp.) -20 – 80 °C / -4 – 176 °F with high-/low warning
Water temperature* (optional instead of air temp.) 40 – 120 °C / 104 – 248 °F with high-/low warning
Oil temperature* 40 – 160 °C / 104 – 320 °F with high-/low warning
Oil pressure* 0 – 8 bar / 0 – 116 psi with high-/low warning
Timekeeping 0 – 100 km/h or 0 – 60 mi/h 0.0 – 99.9 s
Current acceleration (-20.0) – 20.0 m/s2
Average speed 0 – 350 km/h or mi/h
Max. speed 0 – 350 km/h or mi/h
Max. rpm 0 – 20.000 rpm
Max. positive acceleration 0 – 20.0 m/s2
Max. negative acceleration 0 – (-20.0) m/s2
Gear indicator N, gear 1 – 6
Green indicator LED Neutral (N)
Yellow indicator LED Turn signal left, right
Blue indicator LED High beam
Red indicator LED Different warning functions external (e. g. oil pressure switch), internal (rpm, temperature, pressure, voltage)
Output external gear shift flash light Switched power 1.4 A max.
